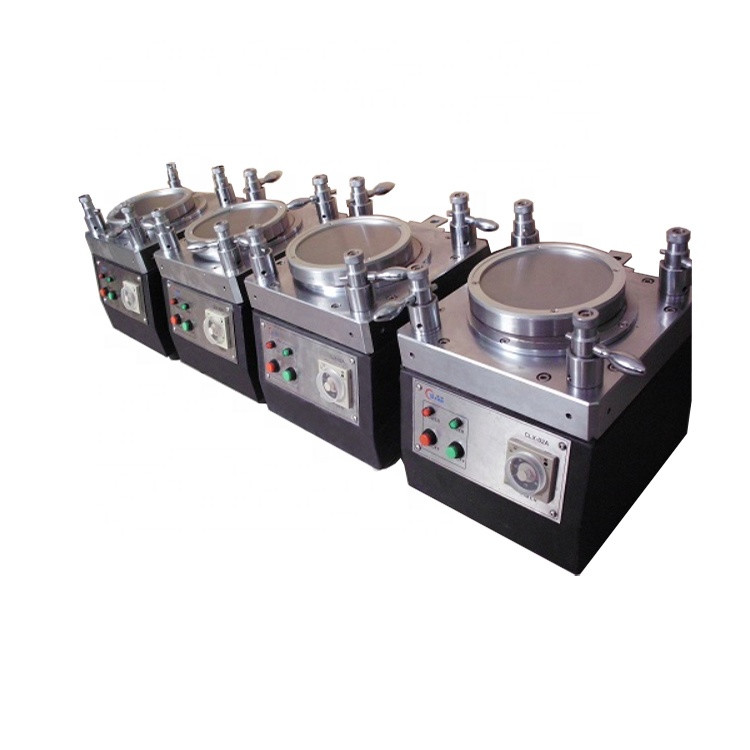

Fiber Cable Patchcord Connector Grinding Seikoh Giken Grind Patch
Cords Polish Optical Polisher
Model:CLX-02E
Place of Origin:ShenZhen,China
Description
1. Fiber optic polishing machine
2. Designed for high volume manufacturing
3. Quick change tooling
4. APC back reflection as low as -70 dB
5. UPC back reflection as low as -60 dB
6. Insertion loss 0.2 dB typical
7. Super centering accuracy
8. Low undercut
9. Excellent connector endface polishing quality
Key Feactures:
1. Double motors with sufficient power
2. High accuraty Machinary size, minimal plane tolerance
3. High accuraty Machinary size, minimal plane tolerance
4. Excellent stability, five or ten years lifetime
Applications:
1. ZrO2 Ceramic Ferrules
2. Quartz capillary
3. Glass materials
4. Stainless steel and titanium alloy
5. Colophony material
Specifications
| 1. Certificate | CE |
| 2. APC return loss | -60 dB |
| 3. UPC return loss | -50 dB |
| 4. Insertion loss | 0.3 dB (SM), 0.2 dB (MM) |
| 5. Under cut | 50nm |
| 6. 3D pass | PC>95%, APC>90% |
| 7. Polishing capacity | SC 36 Max, LC 42 Max |
| 8. Pressure source | Coil Spring |
| 9. Motor speeed | 90rpm rotation, 2rpm revolution |
| 10 .Polish plate size | 127 mm(5 inch) |
| 11. Time settings | 99 min 99 sec (Max) |
| 12. Plate jumpiness height | <10 um |
| 13. Pressure configuration | 21 ~ 36 N/cm2 |
| 14. Pressure range | 0~5kg |
| 15. Noice | unloading <50 dB |
| 16. Work Temperature | 10℃~40℃ |
| 17. Relative Humidity | 15%~85% |
| 18. Libration | Working Status 0.25g 5~100Hz 10min |
| 19. Stopping Status | 0.50g 5~100Hz 10min |
| 20. Power Input | 220~230 VAC 50Hz/60Hz |
| 21. Electric Power | 40W |
| 22. Machine Size | L 240(mm) × W 240(mm) × H 260(mm) |
| 23. Net Weight | 26kg |
| 24. Warranty | One-year warranty |
FAQ
1.Are you a factory or a trader?
......we are factory.
2.What is your MOQ?
......MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by
chuanglixun).
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly
extended based on order quantity
5.How do we pay
......Book in advance or multiple payment methods such as T / T and
T / L.
6.How long is your product warranty?
......The warranty period is 1 year (the warranty period will
provide free repairs, except for consumables). After the warranty
period, accessories will continue to be provided and will be
charged at cost.
7.Do you provide customized services?
......Yes, we provide customized services, According to customer
requirements and description
