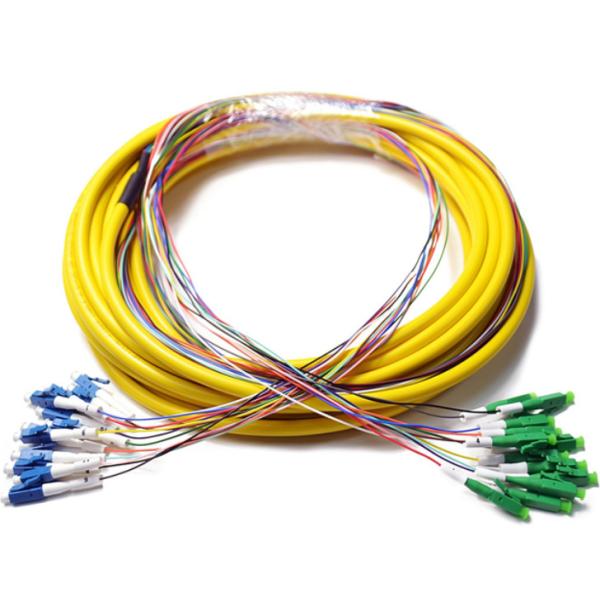

LC/APC-LC/UPC SM 12 Fiber Strands Optical Patch Cord Breakout Cable
Model Number:LC/APC-LC/UPC-SM-12F
Place of Origin:ShenZhen,China
Description
Fiber optic patch Cord is the basic parts for optical
transmission.They are consist of fiber optic cable and terminated
connector. We has strong capacity and experience to support any
large demand.
Ordering options
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH
Feature
| Wavelengths | 1310 and 1550 |
| Jacket Color | Yellow Jacket |
| Bend Radius | Insensitive G.657.A2/B2 (7.5mm) |
| Cable Jacket | 0.9mm PVC |
| Operating Temperature | -4 to 158F (-20 to +70 C) |
| Core | OS2 Bend Insensitive Fiber - 9/125 Microns |
| Fiber-Grade | G.657.A2 |
| Polarity | A(Tx) to B(Rx) |
| Polish | UPC to UPC |
| OS2 9/125 fiber conforms to ITU-657 A2/B2 |
| Multiple Sizes Available | (1m,3m,5m,10m,20m) |
Application
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4.Optical fiber sensor
5.Industry and military application
Speciafication
| Parameter | Unit | FC,SC,LC | ST,MU,MTRJ |
| SM | MM | SM | MM |
| UPC | APC | UPC | UPC | UPC |
| Insertion Loss | dB | ≤0.2 | ≤0.2 |
| Returm Loss | dB | ≥55 | ≥65 | ≥35 | ≥55 | ≥35 |
| Repeatability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 |
| Durability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 |
| Exchangeability | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 |
| Compressive Strength | N | F>300 |
| Operation Life Span | Times | n>1000 |
| Operation Temperature | ℃ | -40~75 |
| Storage Temperature | ℃ | -45~85 |
| Cable Diameter | cm | 0.9,2.0,3.0 or specified |
Packing:
PE bag with stick label (we could add customer's logo in the
label.)
